Guilin Microtech Optical Instrument Co., Ltd. (MTO)

Phone：+86-773-5823609

PRODUCT

Position： > Product > Monocular > Fixed Mag. Monocular Video Micro Series > MTDP Infinity Farness Fixed Magnification Series

Product search

Please select a product

MTDP Infinity Farness Fixed Magnification Series

Description
Specifications
Parameters
Accessories
Other

Optical specifications

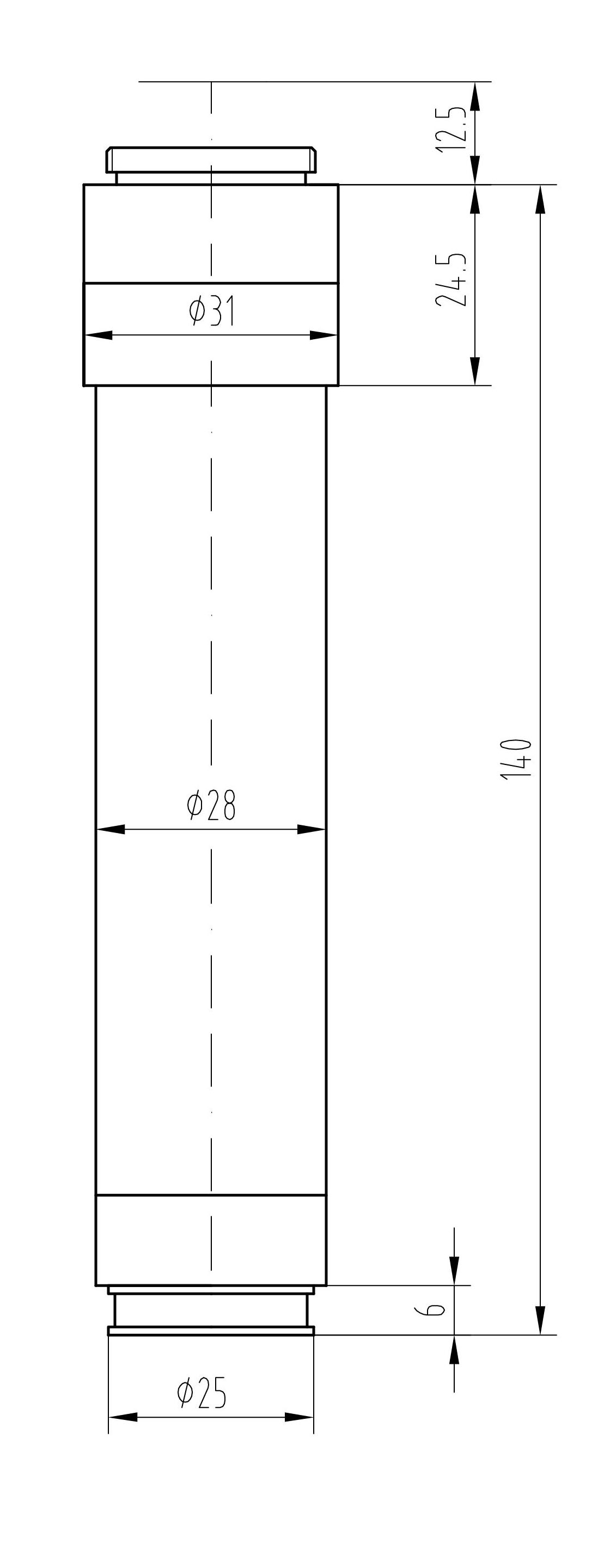

MTDP20	MTDP20

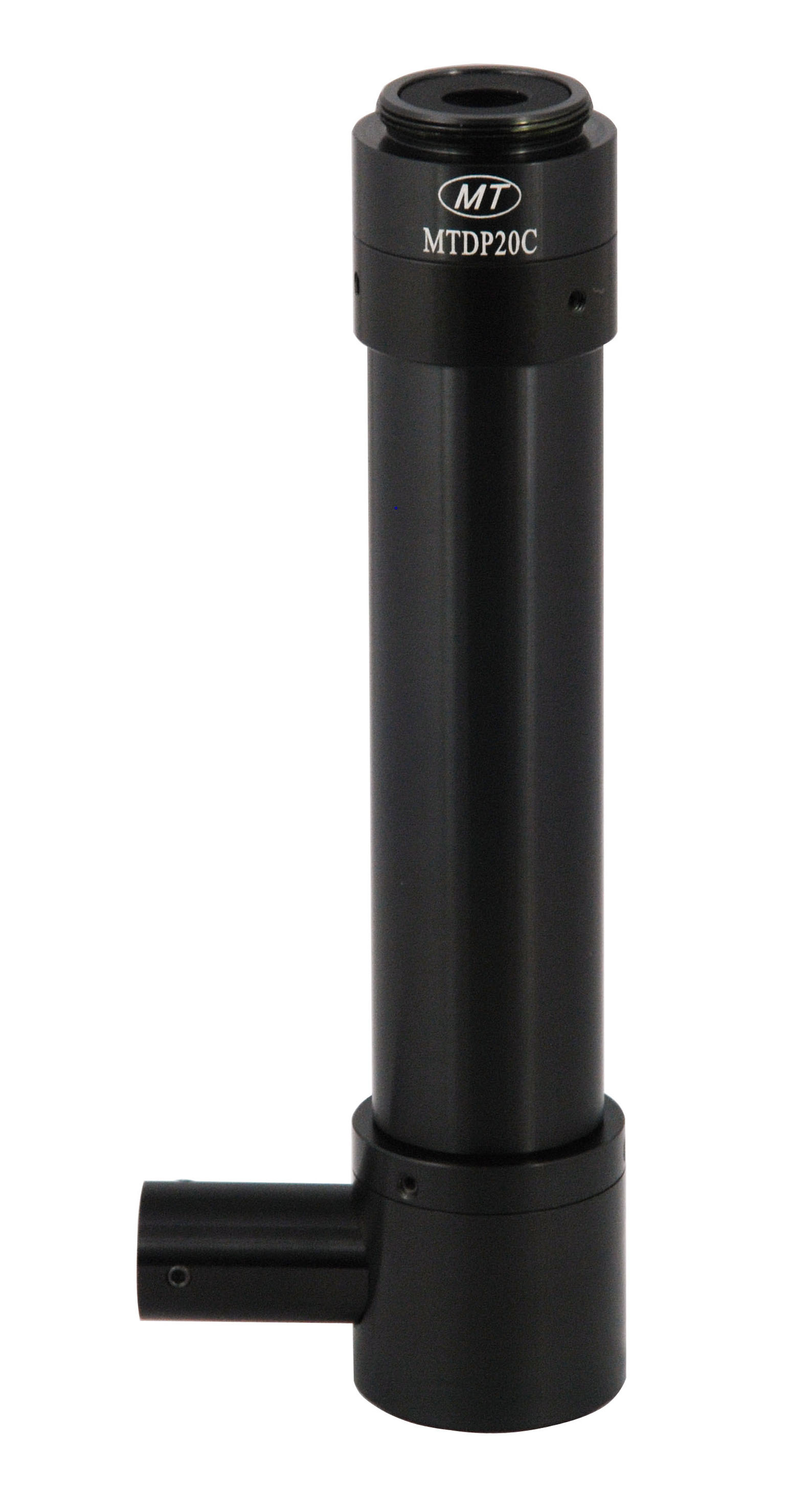

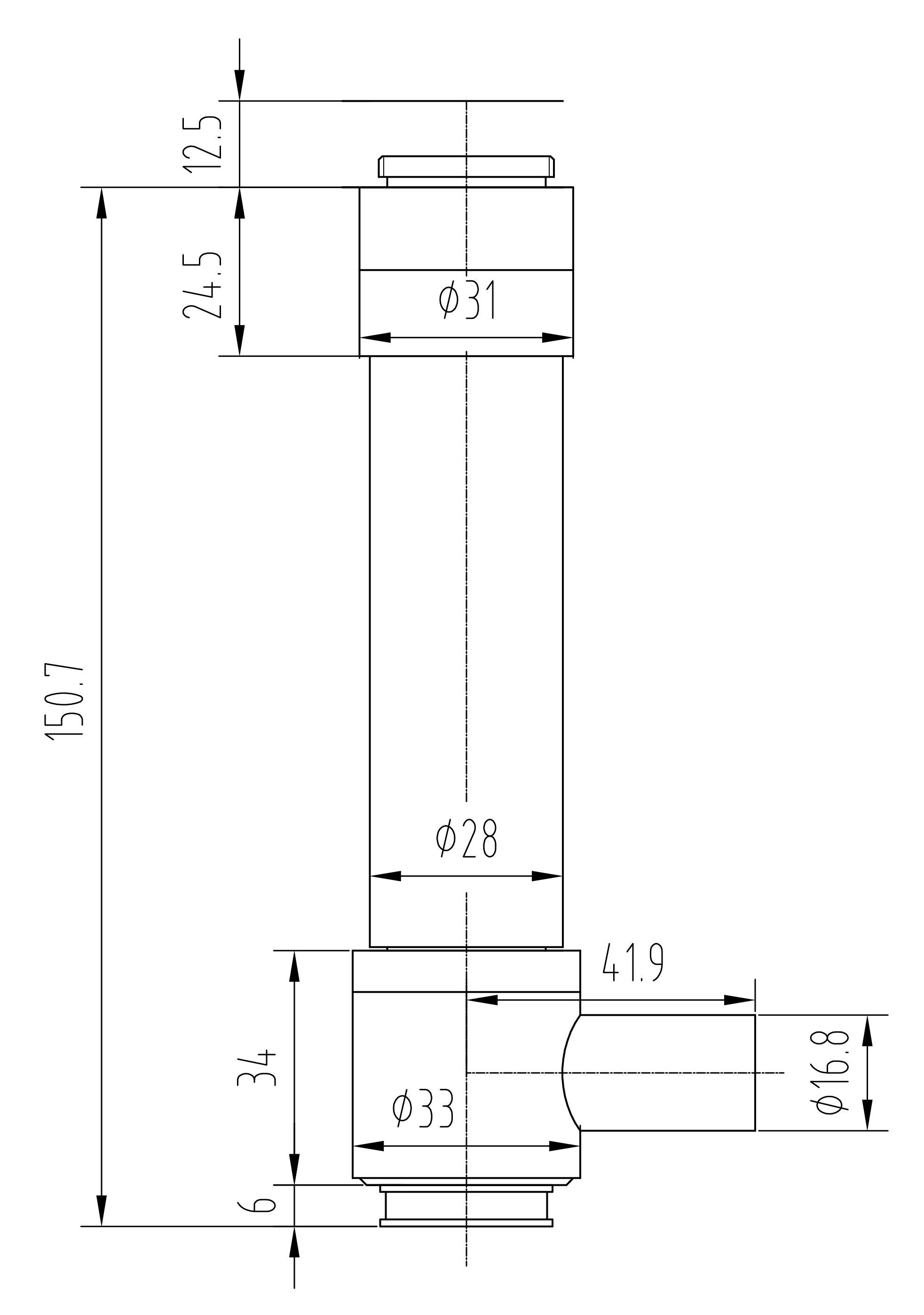

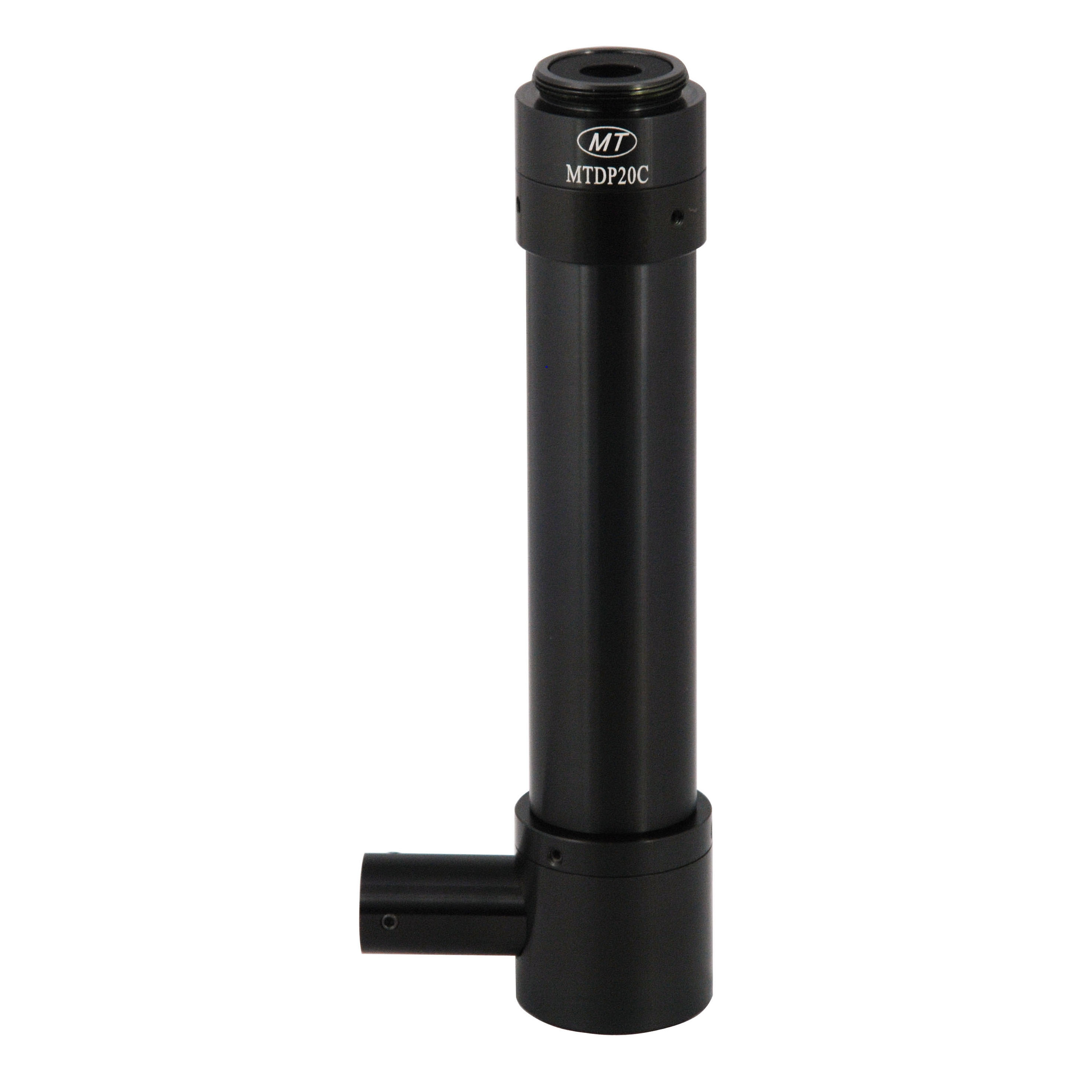

MTDP20C	MTDP20C

Form1：In the condition of matched with 1X front-end objectives(WD:82mm)

Model	Objective	Total Mag.		FOV(mm)
		1/3"、9"	1/3"、17"

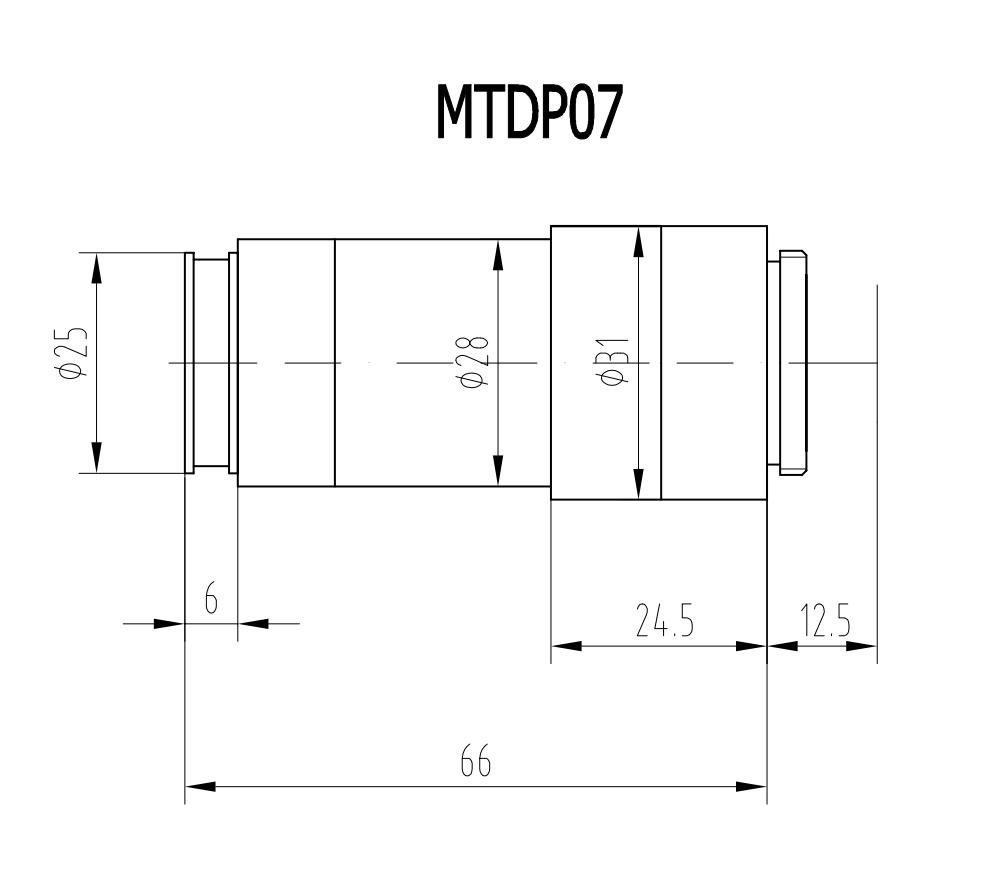

MTDP07	0.7X	28X	42X	6.9X5.1
MTDP07C

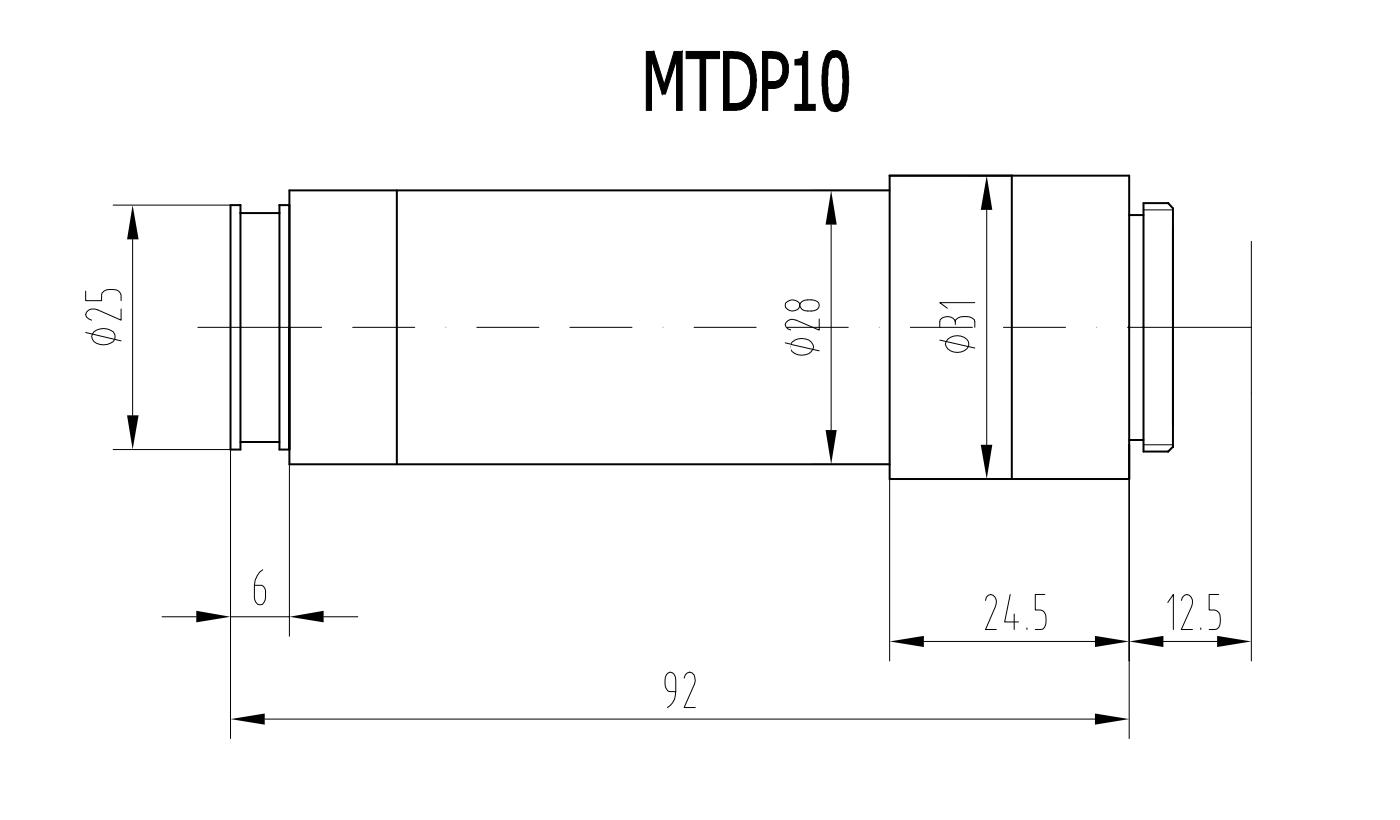

MTDP10	1.0X	40X	60X	4.8X3.6
MTDP10C
MTDP20	2.0X	80X	120X	2.4X1.8
MTDP20C

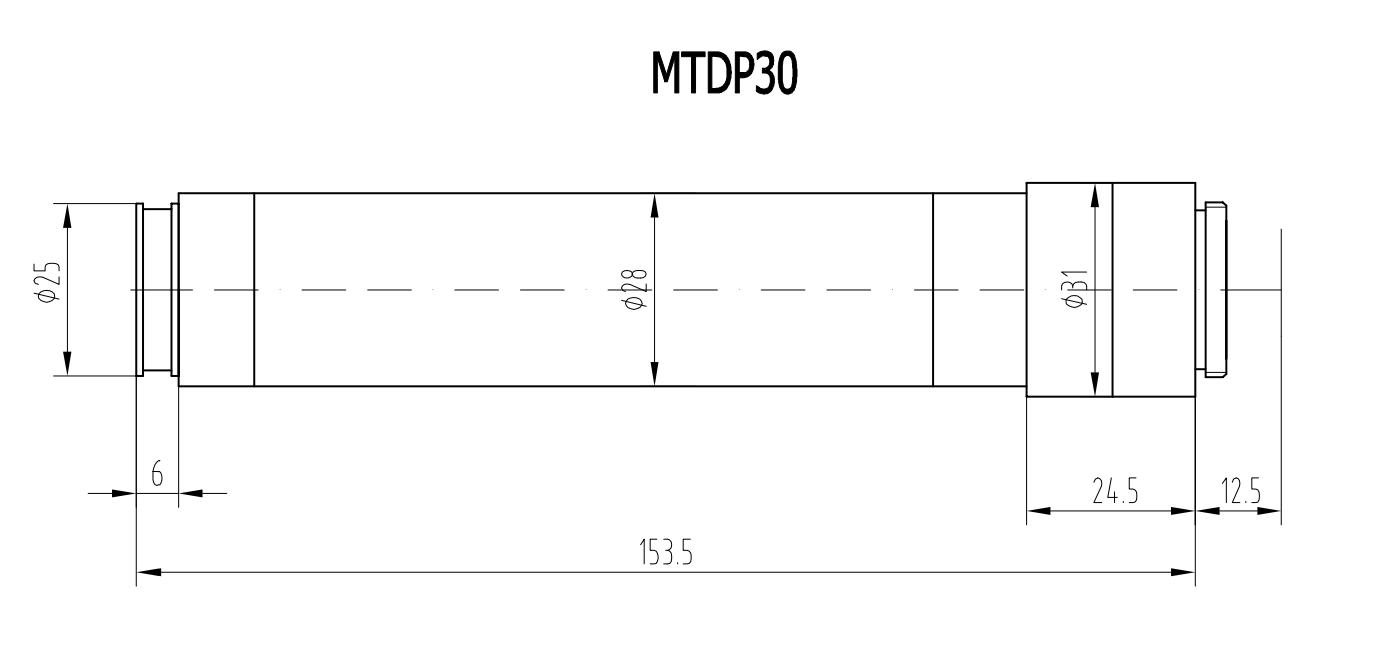

MTDP30	3.0X	120X	180X	1.6X1.2
MTDP30C

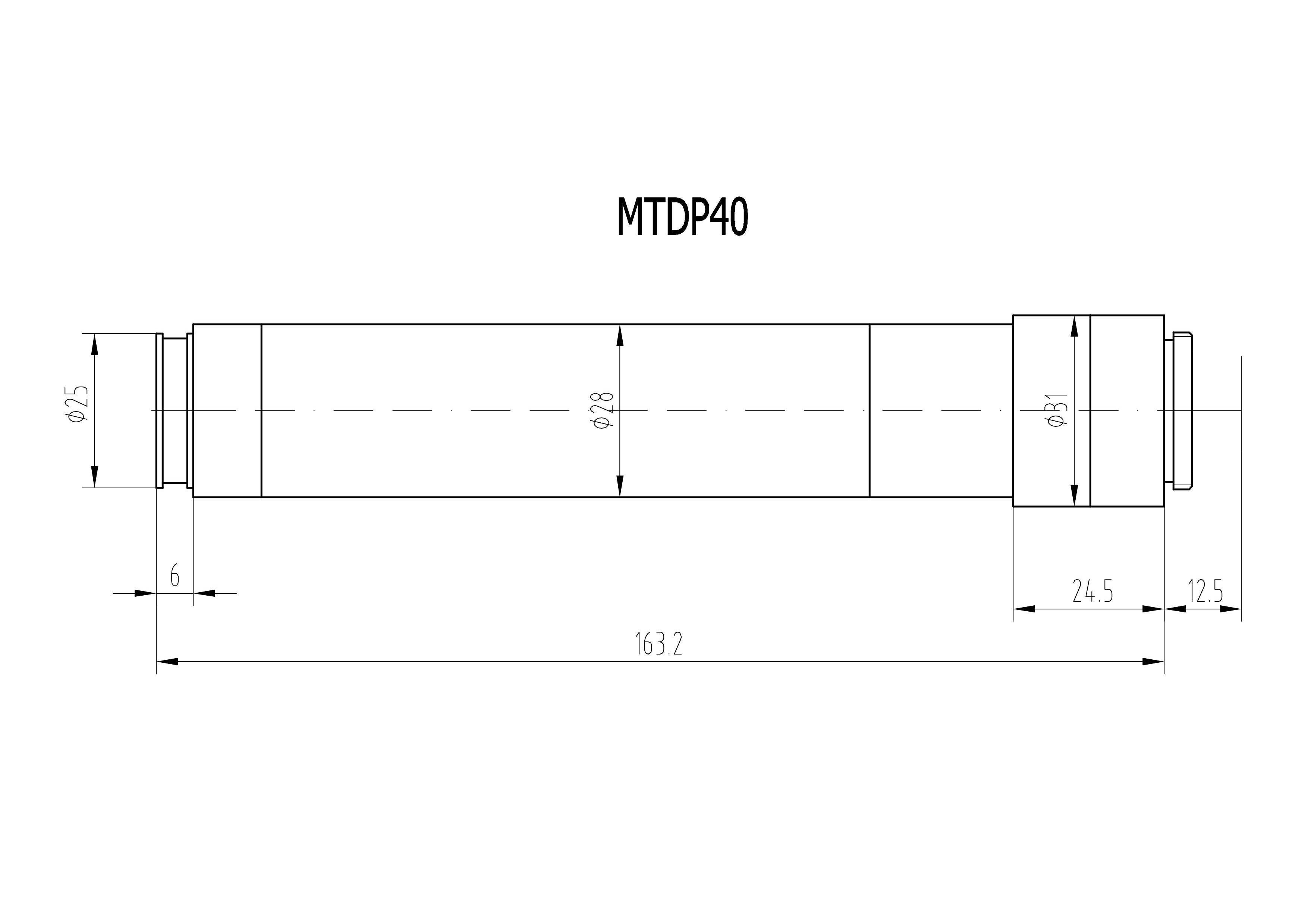

MTDP40	4.0X	160X	240X	1.2X0.9
MTDP40C

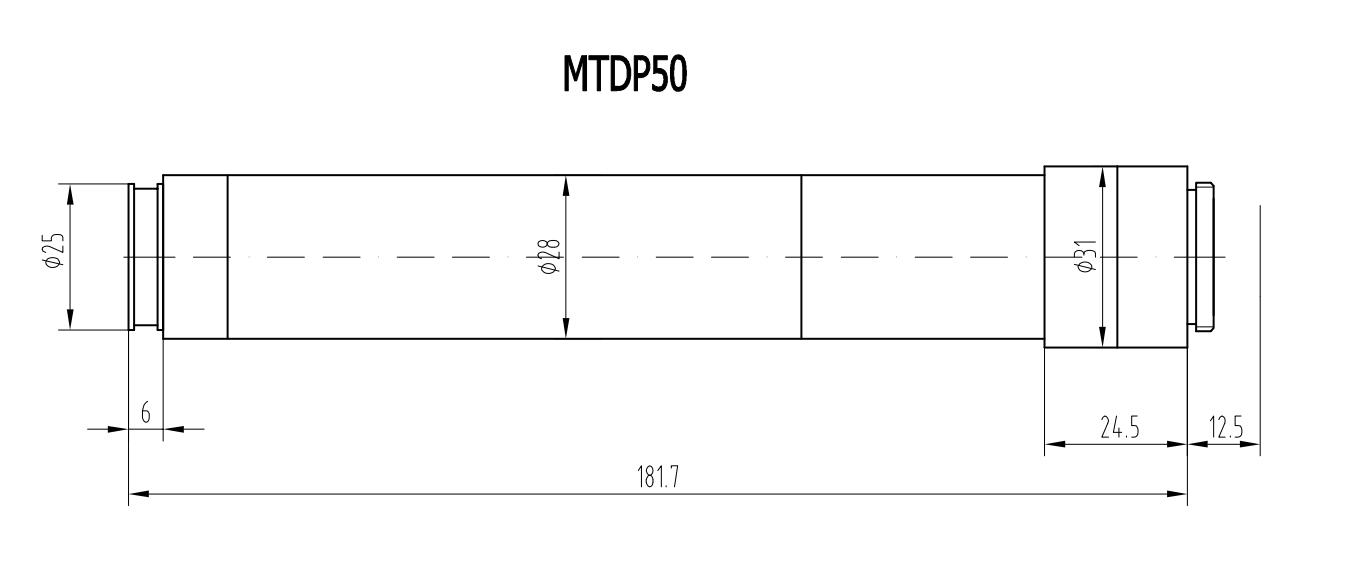

MTDP50	5.0X	200X	300X	0.96X0.72
MTDP50C

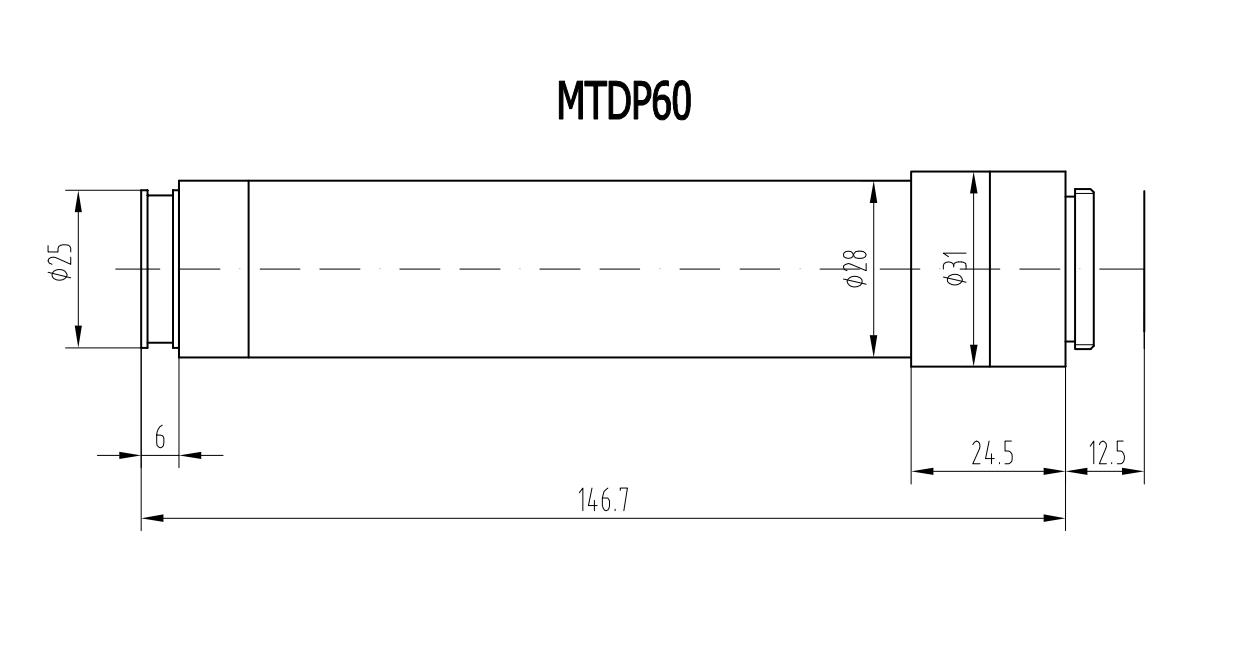

MTDP60	6.0X	240X	360X	0.8X0.6
MTDP60C
MTDP80	8.0X	320X	480X	0.60X0.45
MTDP80C

Form2：In the condition of Using different front-end objectives

Front-end objectives	Items	MTDP10 MTDP10C	MTDP07 MTDP07C	MTDP20 MTDP20C	MTDP30 MTDP30C	MTDP40 MTDP40C	MTDP50 MTDP50C	MTDP60 MTDP60C	MTDP80 MTDP80C
1X	Optical Mag.	1.0X	0.7X	2.0X	3.0X	4.0X	5.0X	6.0X	8.0X
1X	DOF(μm)	412.4	589.1	206.2	137.5	103.1	82.5	68.7	51.5
0.3X	Optical Mag.	0.3X	0.21X	0.6X	0.9X	1.2X	1.5X	1.8X	2.4X
0.3X	DOF(μm)	4597.7	6568.1	2298.9	459.8	1149.4	919.5	766.3	574.7
0.5X	Optical Mag.	0.5X	0.35X	1.0X	1.5X	2.0X	2.5X	3.0X	4.0X
0.5X	DOF(μm)	1666.7	2381.0	833.3	555.6	416.7	333.3	277.8	208.3
0.75X	Optical Mag.	0.75X	0.5X	1.5X	2.3X	3.0X	3.8X	4.5X	6.0X
0.75X	DOF(μm)	740.7	1111.1	370.4	241.5	185.2	146.2	123.5	92.6
1.5X	Optical Mag.	1.5X	1.1X	3.0X	4.5X	6.0X	7.5X	9.0X	12.0X
1.5X	DOF(μm)	190.5	259.7	95.2	63.5	47.6	38.1	31.7	23.8
2X	Optical Mag.	2X	1.4X	4.0X	6.0X	8.0X	10.0X	12.0X	16.0X
2X	DOF(μm)	105.3	150.4	52.6	35.1	26.3	21.1	17.5	13.2
5X	Optical Mag.	5X	3.5X	10X	15X	20X	25X	30X	40X
5X	DOF(μm)	16.7	23.8	8.3	5.6	4.2	3.3	2.8	2.1

Form3：In the condition of Using different front-end objectives

Front-end objectives	1X	0.3X	0.5X	0.75X	1.5X	2X	5X
WD(mm)	82	293	175	117	54	35	10.1
Resolution(μm)	3.5	11.6	7	4.7	2.4	1.8	0.7
NA	0.097	0.029	0.048	0.072	0.14	0.19	0.48
