Position： > Product > Stereo Microscopes > Coaxial Illumination Zoom Stereo Microscopes > MZS1865C Series

Product search

Please select a product

MZS1865C Series

Description
Specifications
Parameters
Accessories
Other

◆ MZS1865C(binocular) and MZS1865TC(trinocular)

◆ Unique optical design, high-quality LED coaxial illumination, high contrast, and large depth of field

◆Applied for images observation ,inspection and measurement on semiconductor, LCD, LED and etc., Which needs coaxial illumination

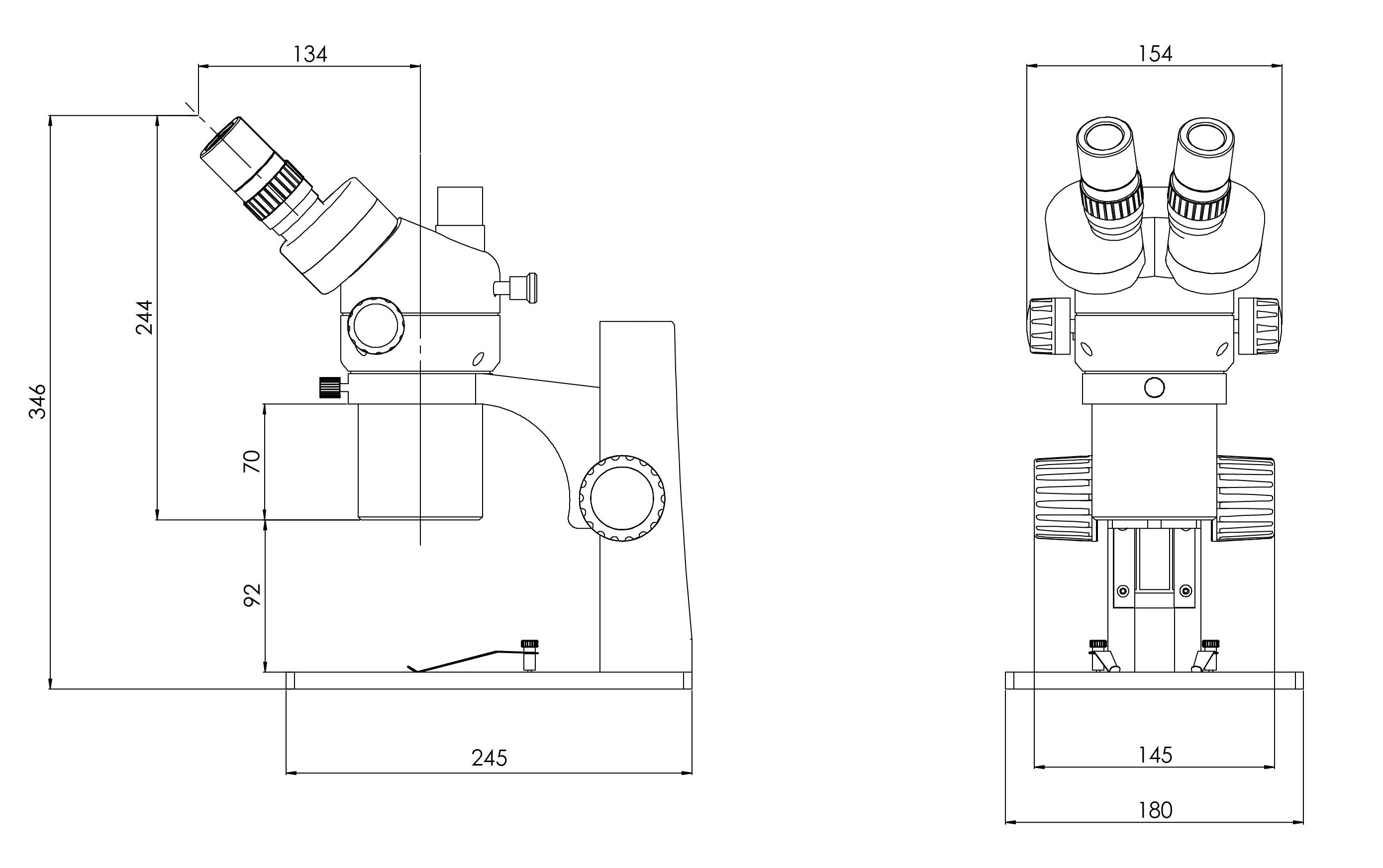

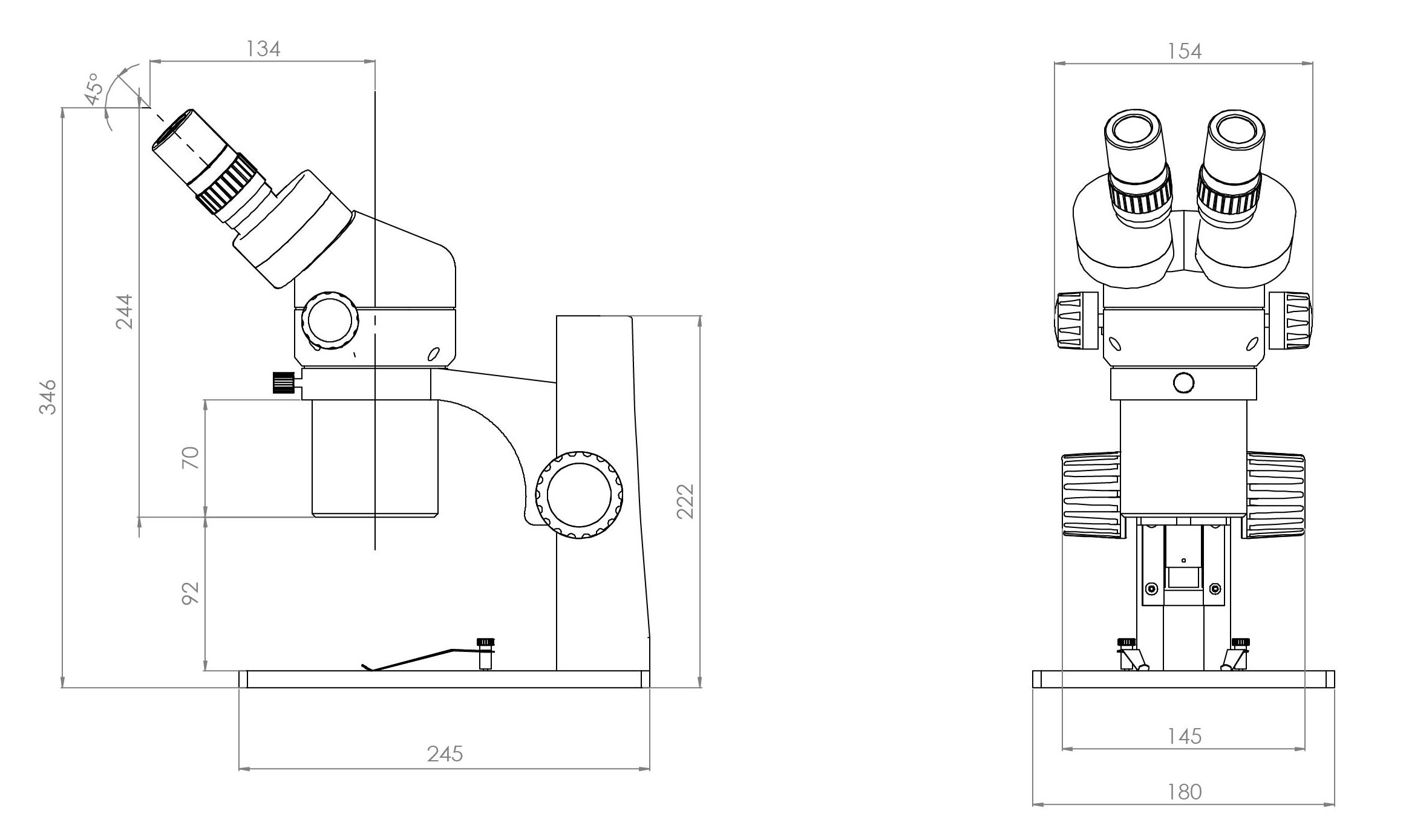

MZS1865C+SD12外形尺寸	MZS1865TC+SD12外形尺寸

Returns

感谢您访问我们的网站，您可能还对以下资源感兴趣：

91精品国产乱码久久久久久古装-国产又黄又粗又猛又爽的学生-人妻激情中文熟女-亚美欧韩色一二三区-麻豆网站亚洲精选-中文字幕人妻熟人妻熟丝袜美-久久91亚洲精品久久91综合-五月激情丁香一区二区三区-精品丰满熟女一区二区三区,91久久偷拍视频,91精品综合久久久久久,久久艹在线免费观看视频 WmOrt

91精品国产乱码久久久久久古装-国产又黄又粗又猛又爽的学生-人妻激情中文熟女-亚美欧韩色一二三区-麻豆网站亚洲精选-中文字幕人妻熟人妻熟丝袜美-久久91亚洲精品久久91综合-五月激情丁香一区二区三区-精品丰满熟女一区二区三区 91精品国产乱码久久久久久古装-国产又黄又粗又猛又爽的学生-人妻激情中文熟女-亚美欧韩色一二三区-麻豆网站亚洲精选-中文字幕人妻熟人妻熟丝袜美-久久91亚洲精品久久91综合-五月激情丁香一区二区三区-精品丰满熟女一区二区三区 91精品国产乱码久久久久久古装-国产又黄又粗又猛又爽的学生-人妻激情中文熟女-亚美欧韩色一二三区-麻豆网站亚洲精选-中文字幕人妻熟人妻熟丝袜美-久久91亚洲精品久久91综合-五月激情丁香一区二区三区-精品丰满熟女一区二区三区

华容县| 图木舒克市| 称多县| 北京市| 靖西县| 同心县| 吴堡县| 象山县| 郑州市| 余姚市| 闽侯县| 广州市| 囊谦县| 夏邑县| 丹阳市| 呼玛县| 青铜峡市| 乐业县| 江西省| 赤城县| 丹凤县| 龙南县| 始兴县| 囊谦县| 河北区| 西平县| 武安市| 四川省| 马公市| 长垣县| 裕民县| 虞城县| 安义县| 苗栗市| 乌兰察布市| 玛纳斯县| 邢台县| 延安市| 武穴市| 济源市| 怀仁县|

Magnification	Total magnification (standard outfits): 18X~65X, Extend total magnification：195X
Eyepiece	SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm
Eyetubes	Inclined 45°
WD	92mm
Focus range	Track stand:100mm
Interpupillary distance adjustment range (10X eyepiece)	52mm~76mm
Diopter adjustment range	±6 Diopter
The holder and the head matching dimension	Φ76mm
Illuminators	Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V、10W) on the top.

Eyepiece	Item	Main body

10X/Φ23	Total Mag.	18X~65X
	FOV(mm)	Φ12.78~Φ3.5
15X/Φ17	Total Mag.	27X~97.5X
	FOV(mm)	Φ9.4~Φ2.6
20X/Φ14	Total Mag.	36X~130X
	FOV(mm)	Φ7.78~Φ2.2
30X/Φ9	Total Mag.	54X~195X
	FOV(mm)	Φ5~Φ1.4
WD(mm)		92

	Stands	SD1~SD18
	Eyepieces	WFH10X, SWF15X, SWF20X, SWF30X
	Divisional eyepieces	WFH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY
	CCD adapters	C0.3-S、C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
