Guilin Microtech Optical Instrument Co., Ltd. (MTO)

Phone：+86-773-5823609

PRODUCT

The universal bracket

Note：
      Using universal stands can extend working area, can observe objects in any direction. There are 4 kinds of universal stands can be selected.

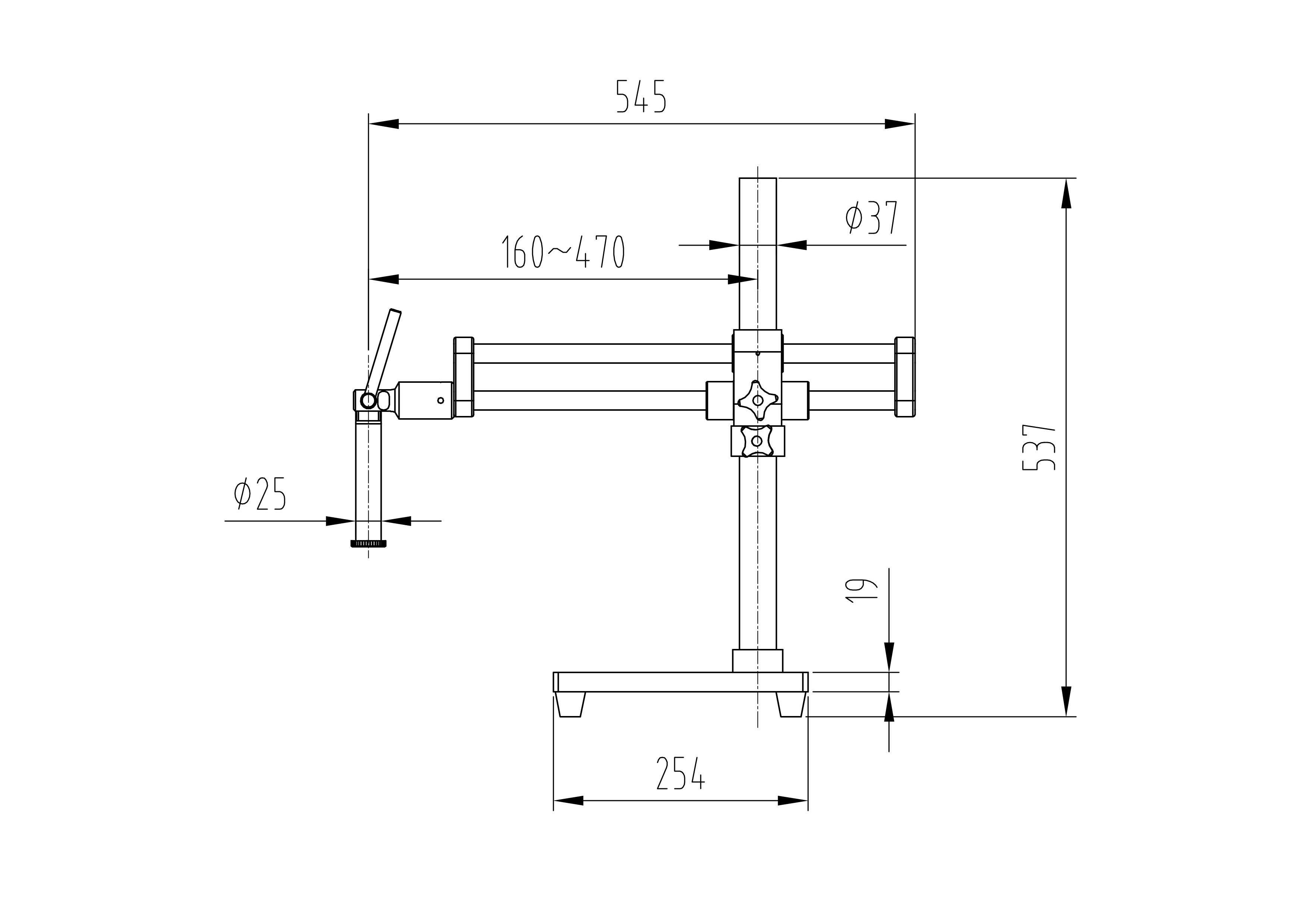

   Model: U1 or U1C universal stand
   Introduction:
● Cast iron oleplate，anticorrosive and wearable metal post，aluminium alloy rail.
● Use with holder SF1，can observe object with any direction，enlarge the range of observation.
● The size of the soleplate: 254×254×40mm(used in U1)
● The maximal clamped thickness of U shape nip: 63.2mm(used in U1C)
● The height of post：475mm，diameter：Φ37mm ● Rail with gear ang rack flexed adjustment, the shortest flexed length is 560mm, and the longest is 605mm, diameter：Φ37mm
● The measurement to match between the steeve and the aperture：Φ25mm

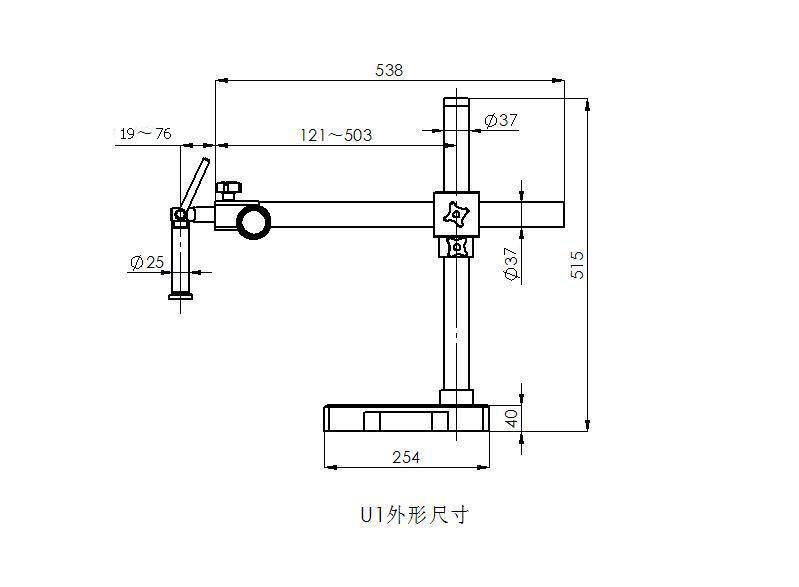

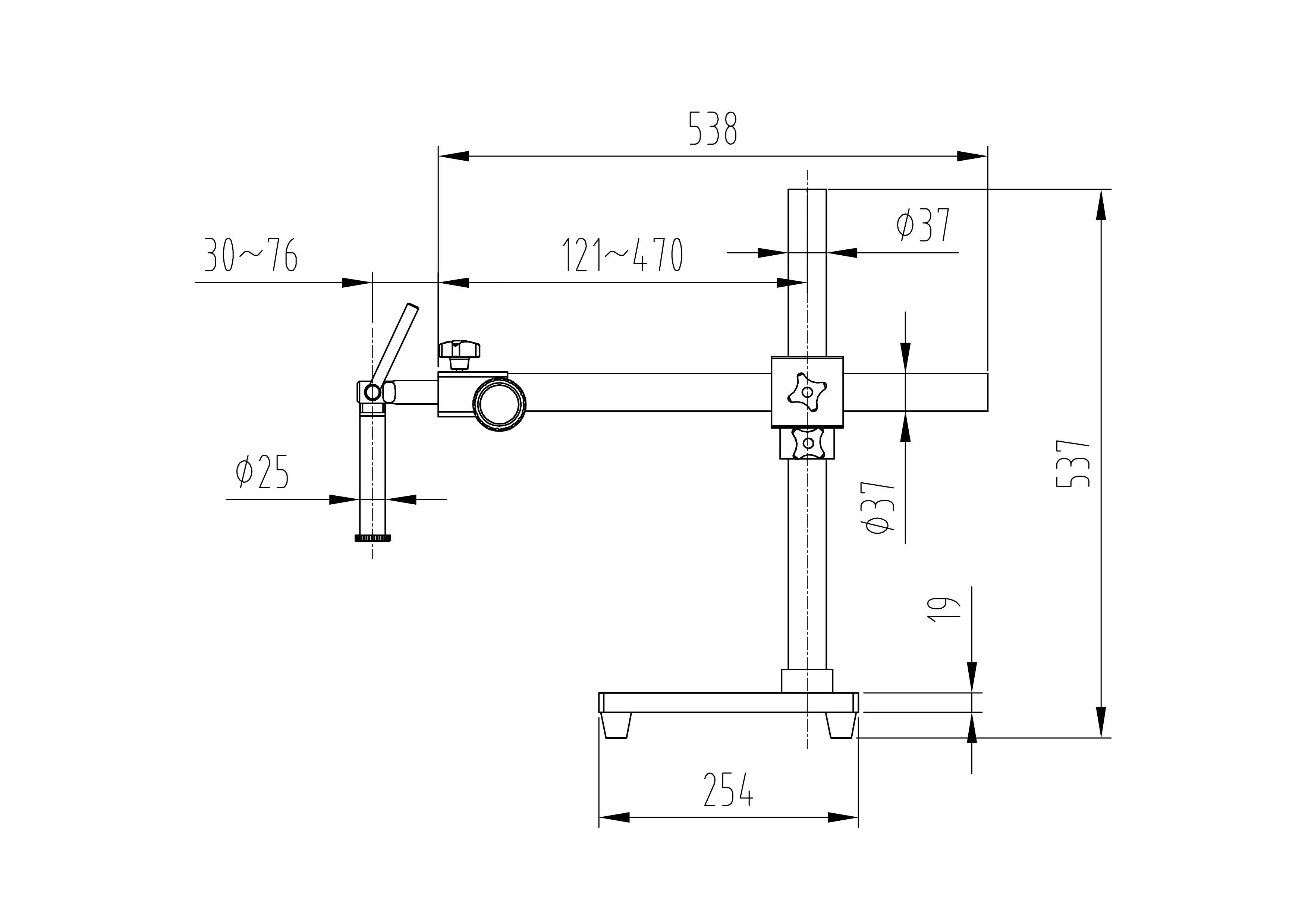

U1 exemplify

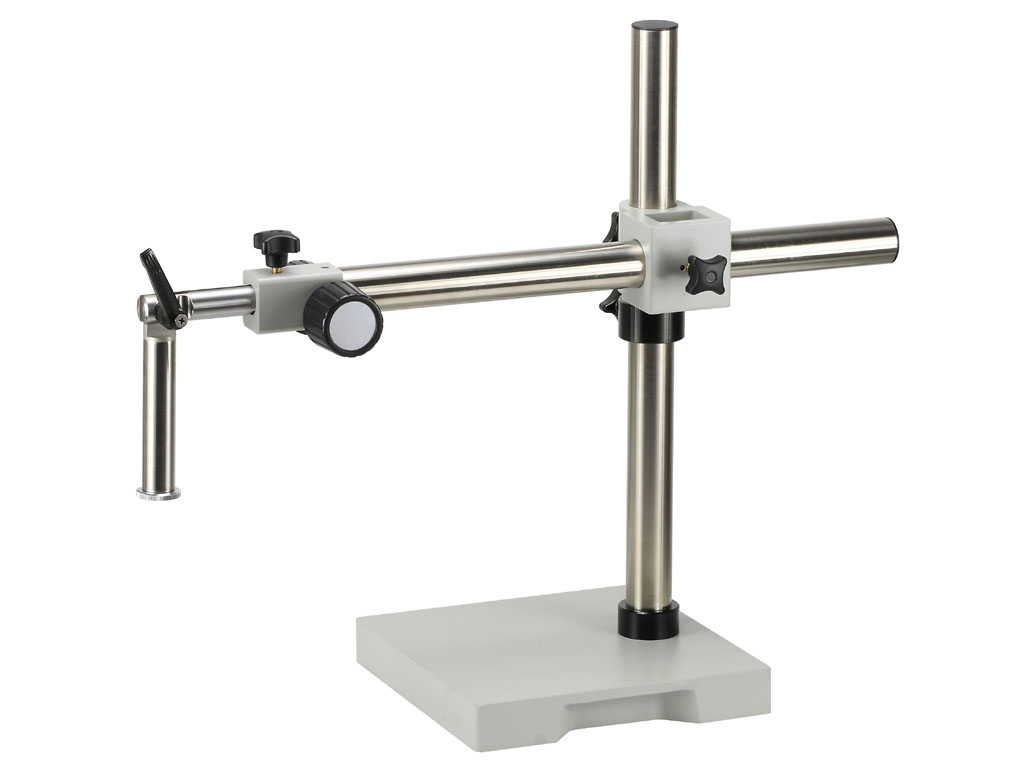

U1

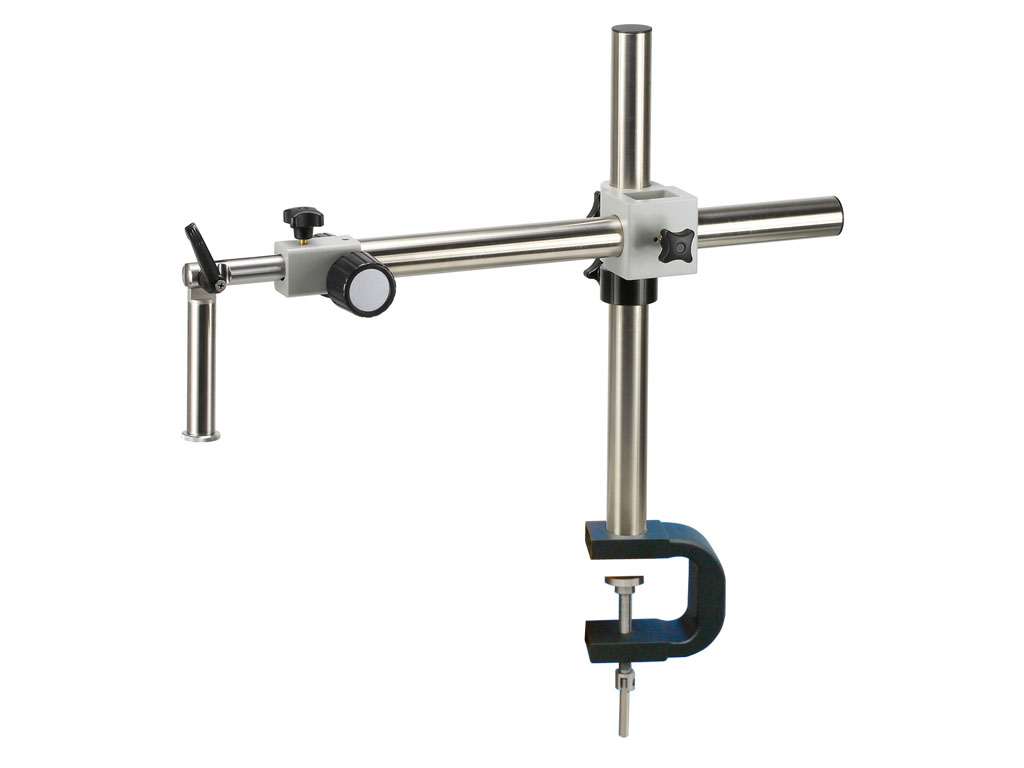

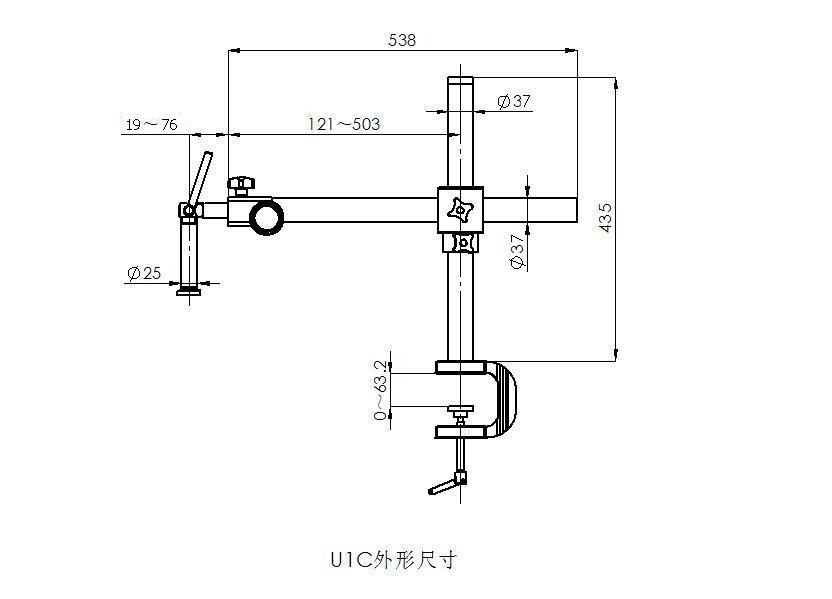

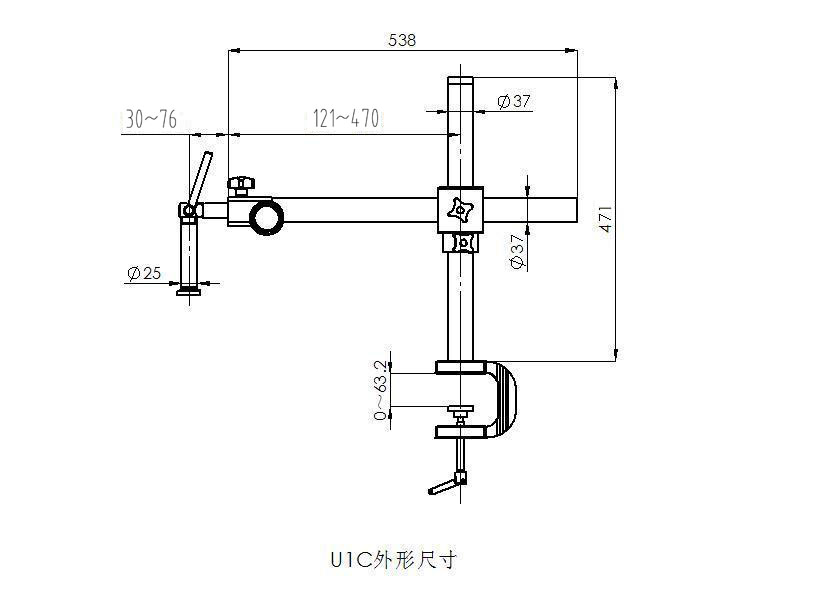

U1c

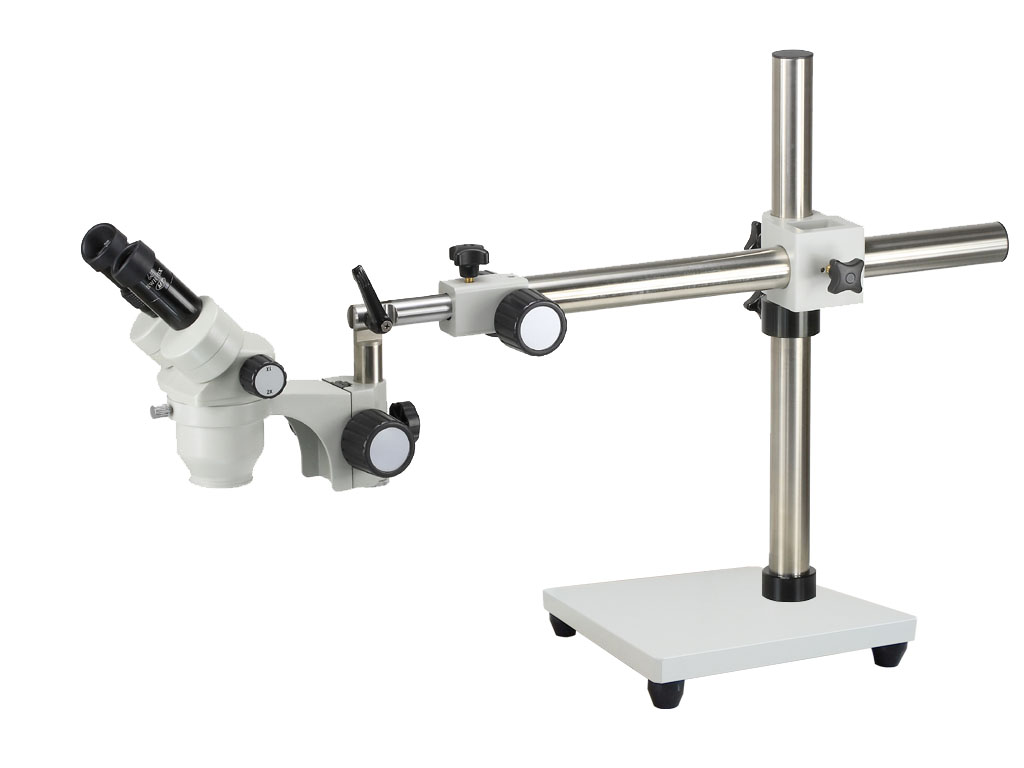

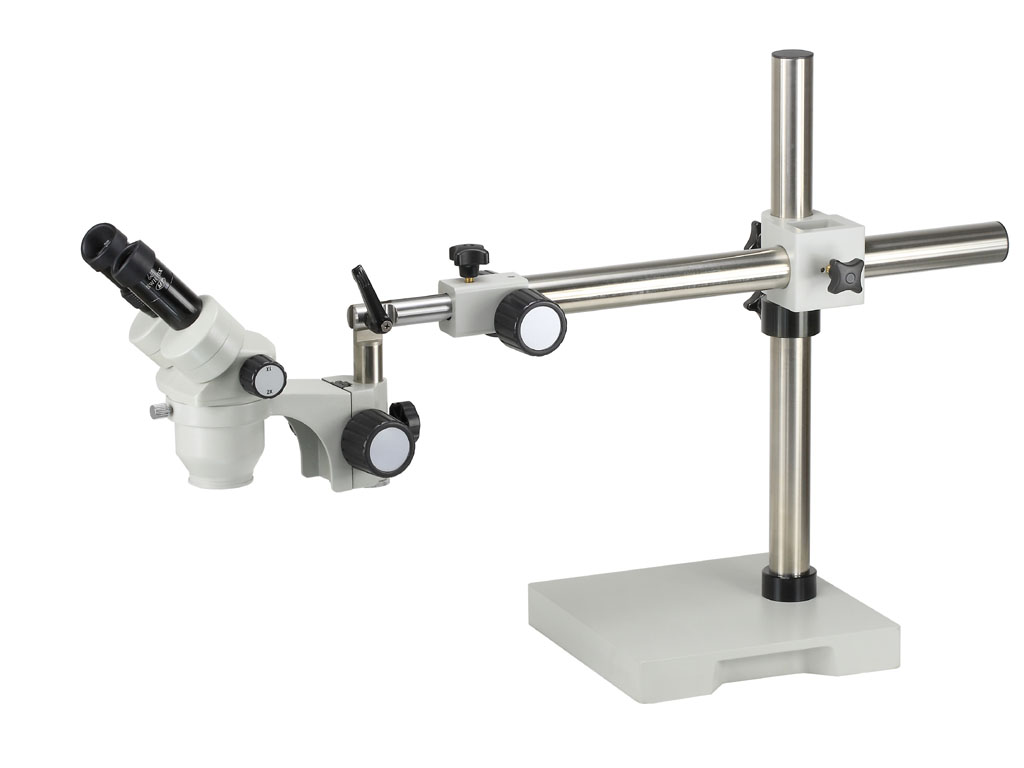

U1+MTS112+SF1

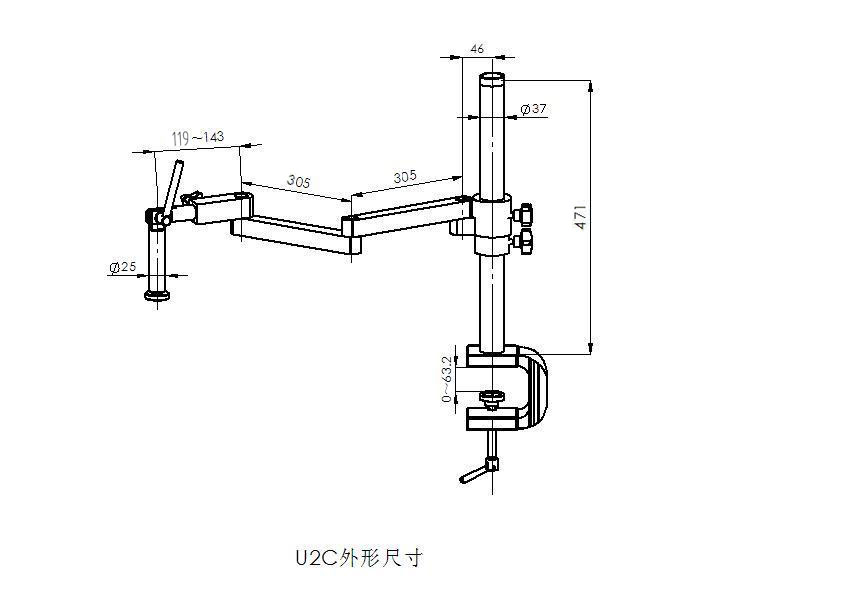

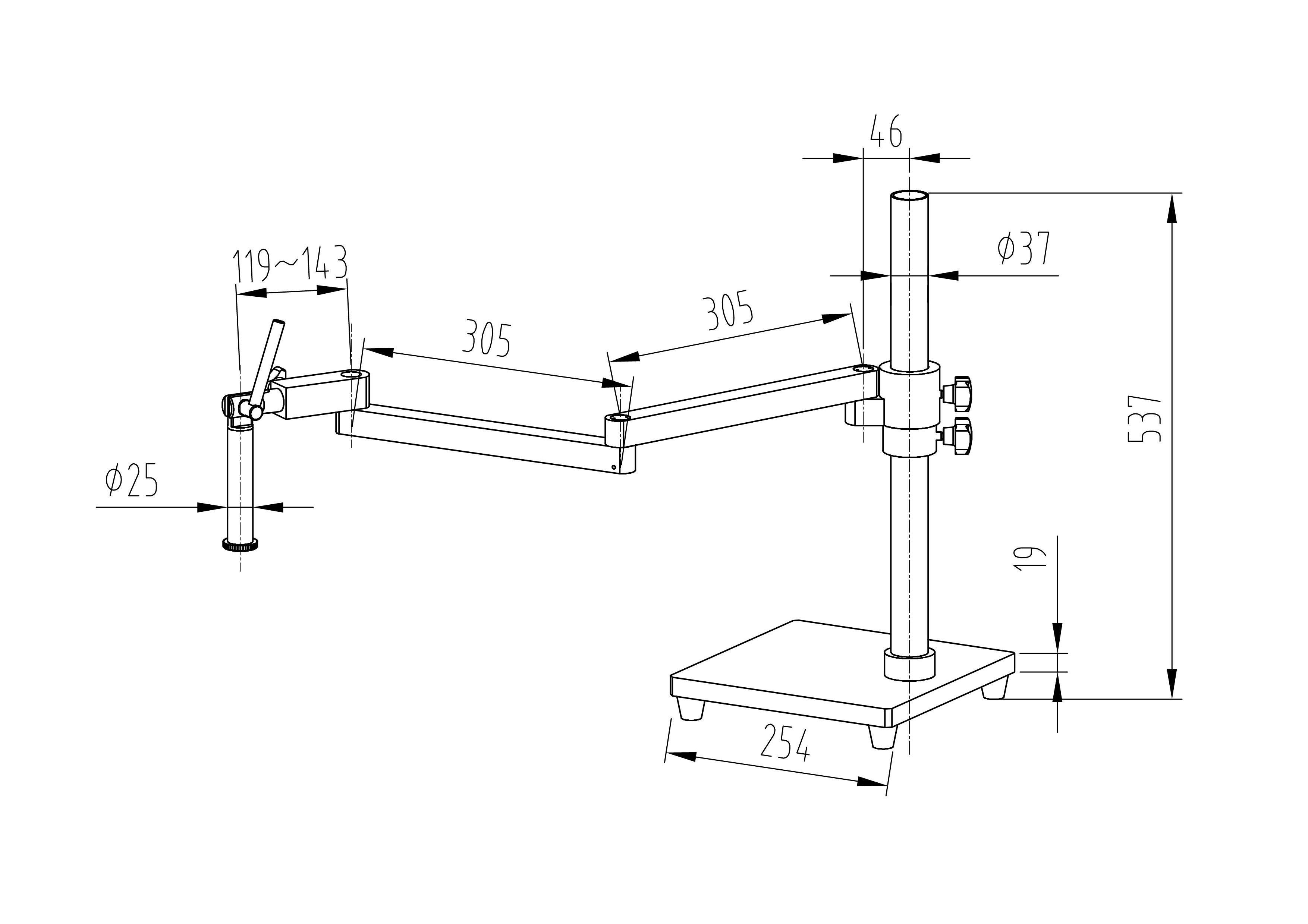

  Model: U2 or U2C universal stand
  Introduction:
  ● Cast iron soleplate，anticorrosive and wearable metal post，aluminium alloy telescopic rail. Use with holder SF1，can observe object with any direction，enlarge the range of observation.
  ● The size of the soleplate: 254×254×40mm(used in U2)
  ● The maximal clamped thickness of U shape nip: 63.2mm(used in U2c)
  ● The height of post：475mm，diameter：Φ37mm
  ● The measurement to match between the steeve and the aperture：Φ25mm

U2 exemplify

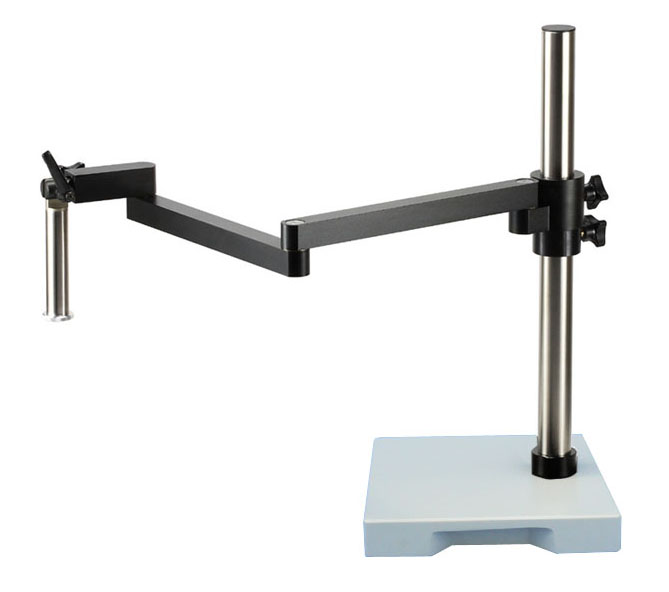

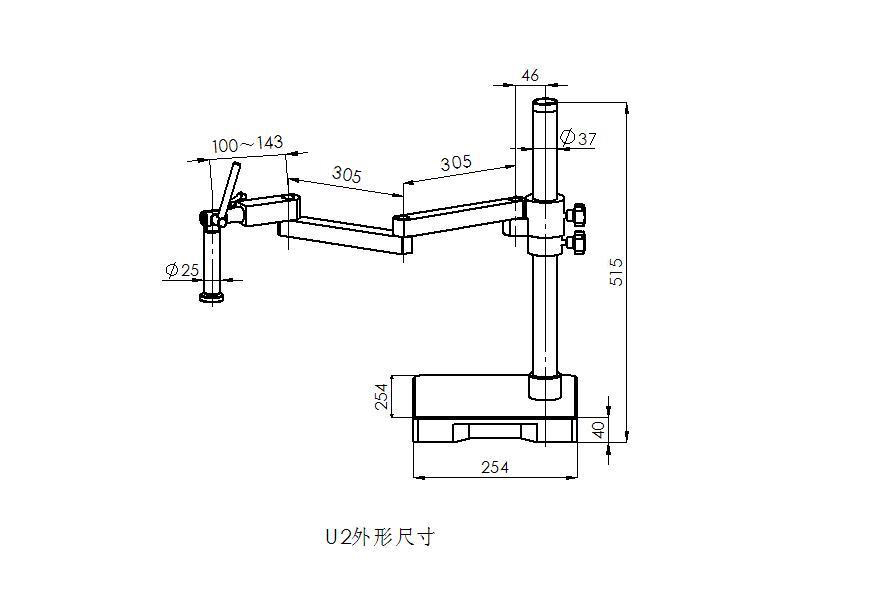

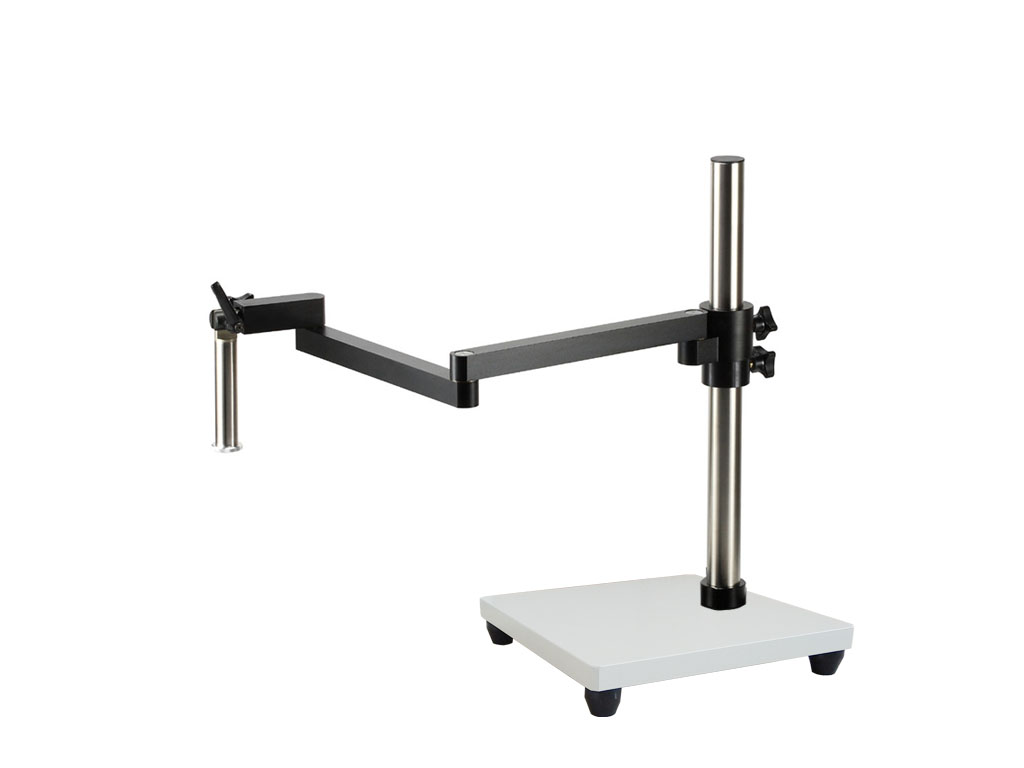

U2

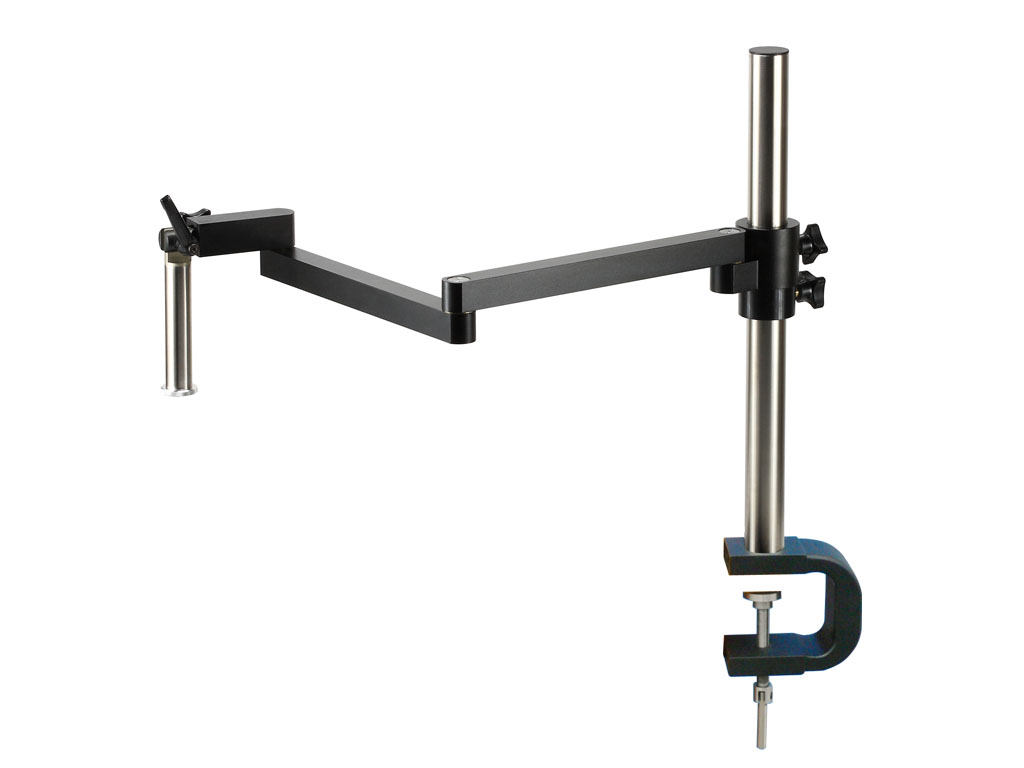

U2c

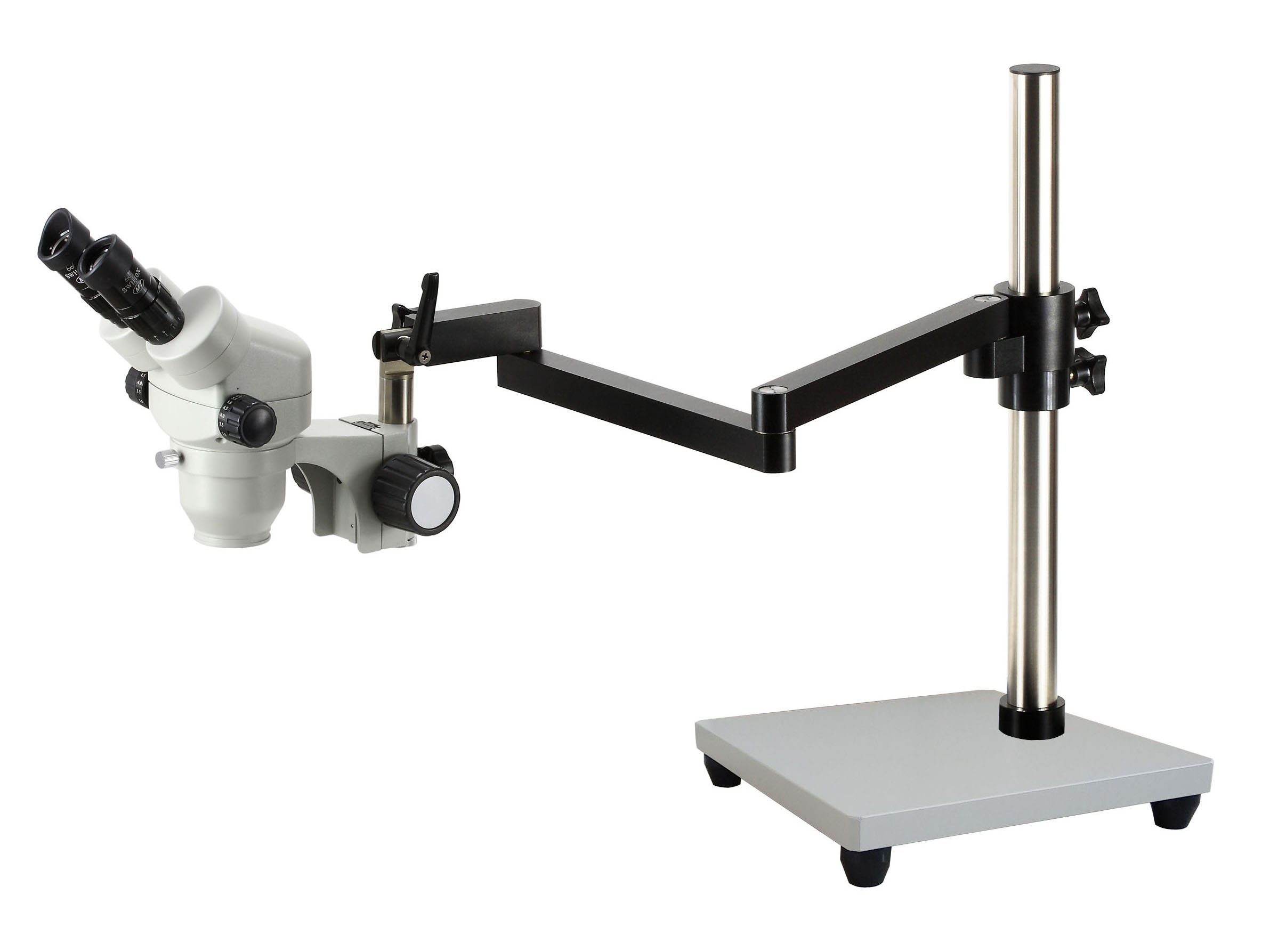

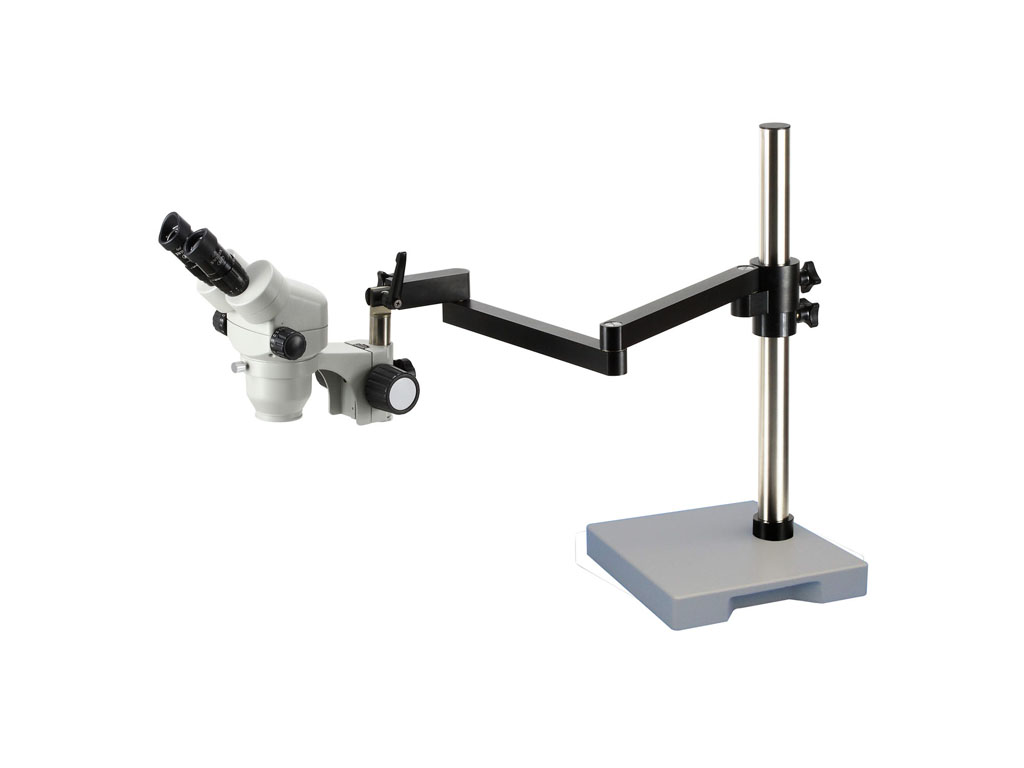

U2+MZS1065+SF1




  Model: U3 or U3C universal stand
  Introduction:
  ● Cast iron soleplate，two stainless steel rails，exact sliding bearing，insure agile glide.
  ● The size of the soleplate: 254×254×40mm(used in U3)
  ● The maximal clamped thickness of U shape nip: 63.2mm(used in U3c)
  ● The height of post：475mm，diameter：Φ37mm
  ● The length of double rails：460mm，diameter：Φ19.05mm
  ● The measurement to match between the steeve and the aperture：Φ25mm

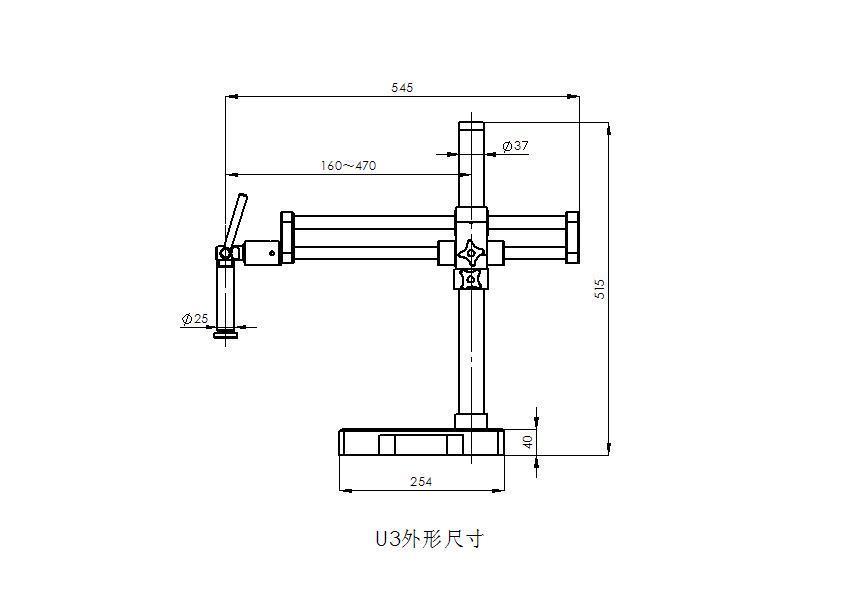

U3 exemplify

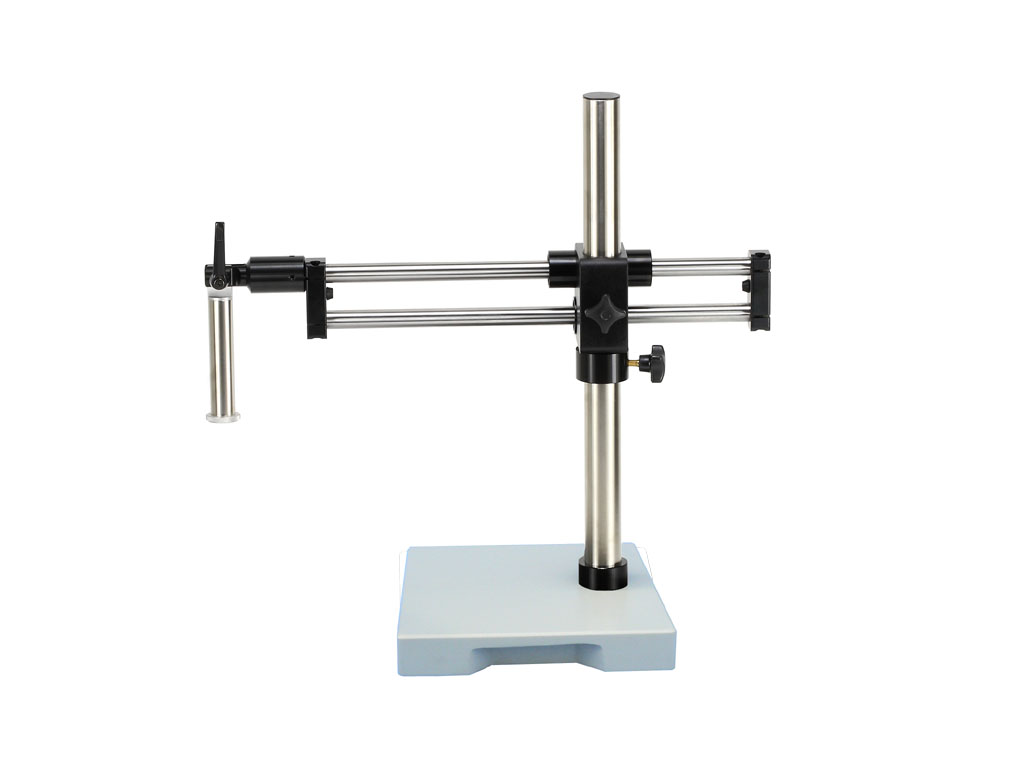

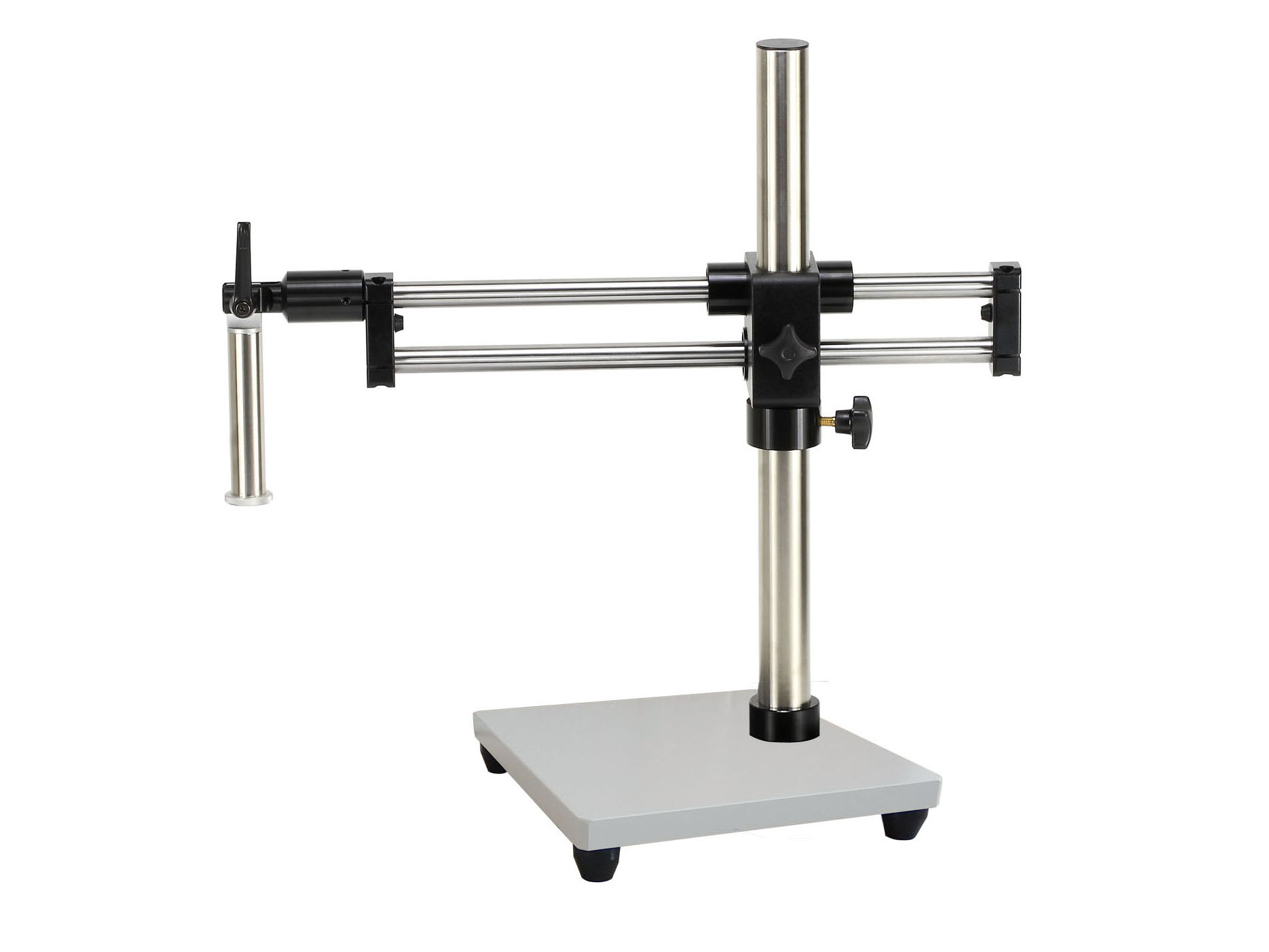

U3

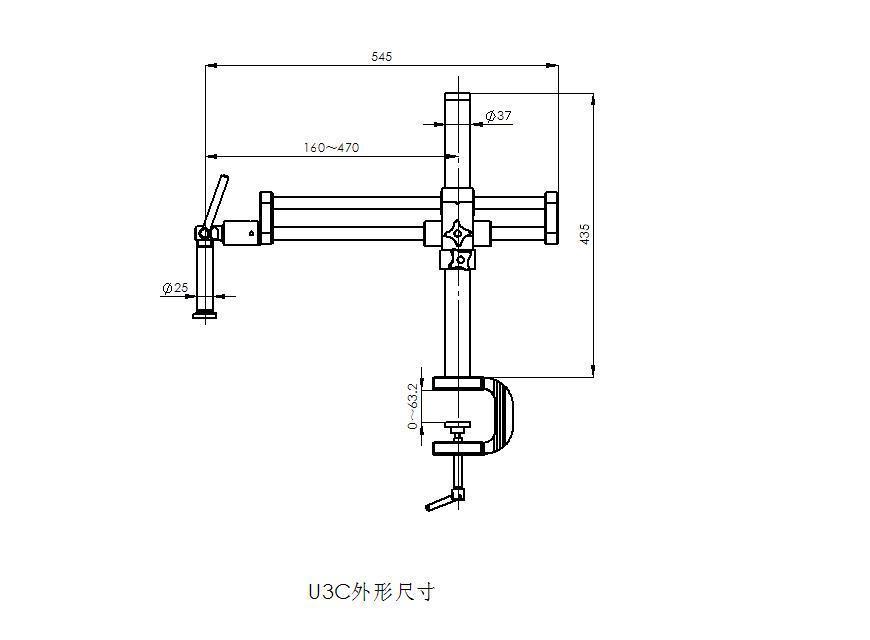

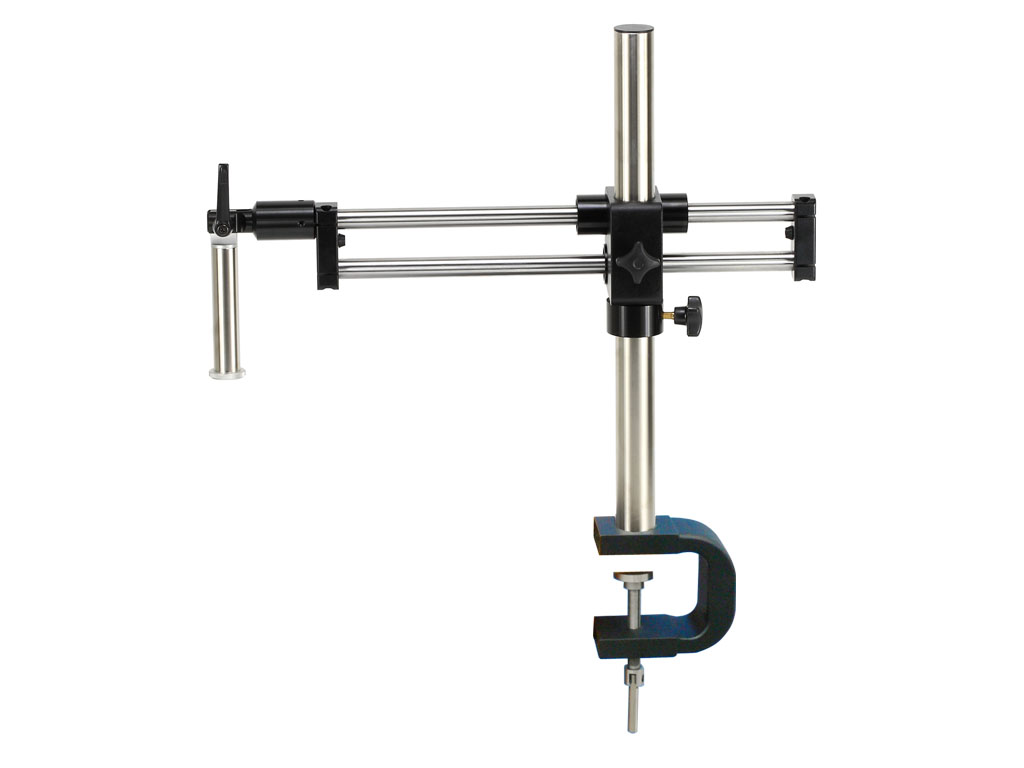

U3c

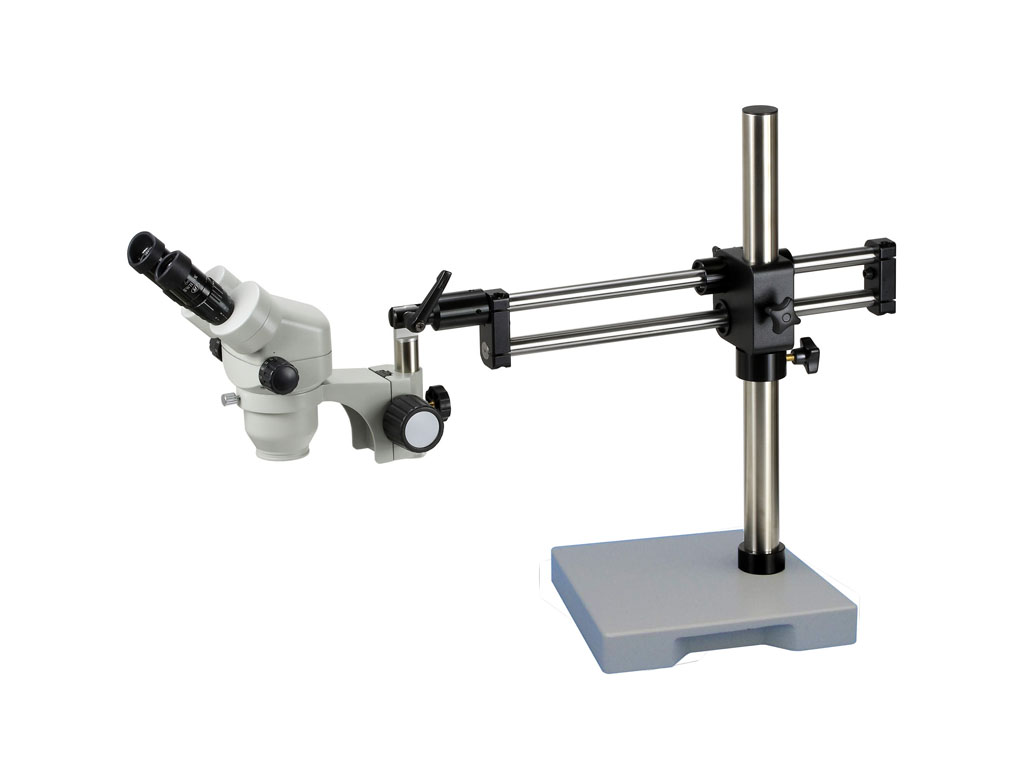

U3+MZS0745+SF1



  Model: U4 minitype universal stand
  Introduction:
  ● Cast iron soleplate，anticorrosive and wearable metal post, rail. Use with holder SF1，can observe object with any direction，enlarge the range of observation.
  ● The size of the soleplate: Φ220mm , height: 30mm
  ● The height of post：345mm，diameter：Φ25mm
  ● The length of rail：345mm，diameter：Φ25mm
  ● The measurement to match between the steeve and the aperture：Φ25mm

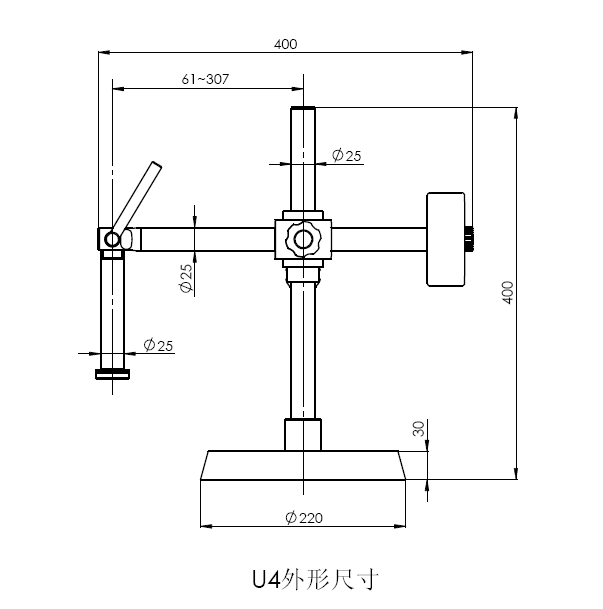

U4 exemplify

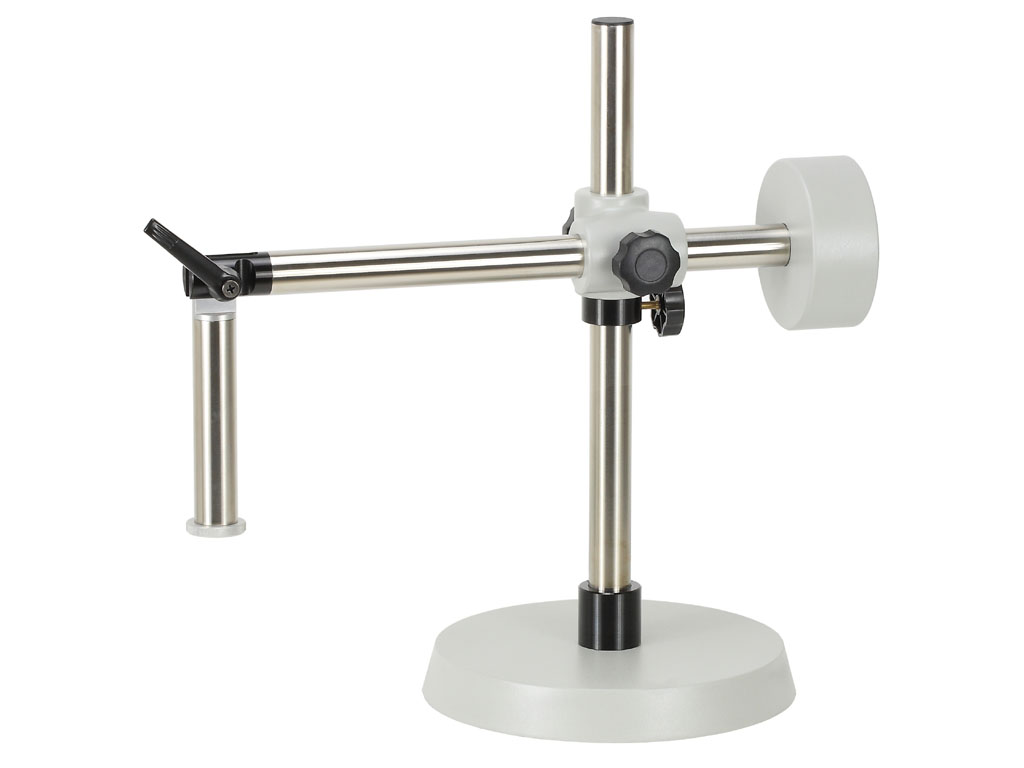

U4
U4+MZS0745+SF1
